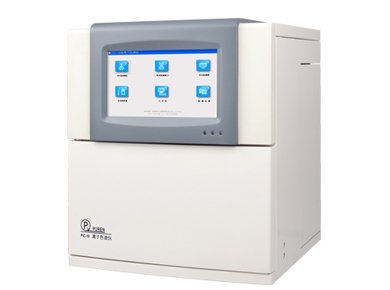

Integrated design, highlight the wide LCD touch screen
Integrated design, compact structure, the maximum compression of the various aspects of the length of the pipeline, effectively reducing the system's dead volume, improve the detection performance of the system;
10.1 inch high-brightness ultra-wide LCD touch screen, no external computer, you can achieve full control of the instrument and the spectrum of the display function, the operation more convenient; with the software drag and drop function, you can view any details of the spectrum;
Powerful embedded chromatographic workstations
Built-in embedded chromatography workstation software, no PC, can be completed independently of the spectrum analysis and data processing.
Graphical anti - control interface, user - friendly operation process
Workstation content is rich, the interface is simple, intuitive, easy to operate;
Can automatically make calibration curve, complete the sample of automatic analysis.
The software can realize the effective integration and control of the system components, and can be seamlessly connected with the detector, the autosampler and other components;
And autosampler with the data can be achieved batch processing, automatic generation of WORD or Excel format for users to browse, print.
Can be directly connected to the printer, the various types of spectrum report printing, you can also use U disk, network communications, etc., the data transmission to the PC.
And Pixin instrument ion chromatography mobile phone software, remote control of equipment and access to data. Through the mobile phone software can always view the operation of equipment, and retrieve the relevant spectrum and data.
Fully automatic dilution function
Built-in automatic sampling device, can achieve automatic sample configuration. With the built-in chromatography workstation software, automatic calibration curve, and for the analysis of unknown samples;
Built-in dilution, for high concentrations of samples, can be manually or automatically select the dilution factor for dilution.
Modular design, a variety of functional personalized custom
Using the overall design, according to user requirements flexible configuration of the high integration of integrated models.
Effectively control the mutual interference between the components, to achieve conductivity detector, thermostatic oven (temperature control conductivity cell, chromatographic separation column, suppressor), display panel, high pressure advection pump, flow system, automatic matching system, Including real-time control and data processing), online degassing, carbon dioxide suppressors and other components integration.
Plastic non-metallic flow path
Full PEEK high pressure pump head;
Rheodyne PEEK six-way valve, acid and alkali can be reversed and reverse organic solvents, to avoid metal ion pollution;
Eluent bottle, flow tube and joints are selected PEEK, polytetrafluoroethylene, polypropylene and other materials can be acid and alkali corrosion;
Identifiable high and low pressure pipeline, to facilitate customer identification, maintenance more convenient;
Built-in pool pillar integrated thermostat system, the whole system of high precision temperature control
Conductivity cell, column, six-way valve, suppressor equivalent thermostat box, the system pipeline connection is short, reduce the system dead volume and peak diffusion; also with eluent warm-up function;
High-performance heat exchange technology, high temperature control accuracy, fast heating, you can eliminate the ambient temperature is low, the negative impact of the negative temperature fluctuations;
Built-in pool pillar integrated thermostat system (patent number: 200820019630.3),
Data double backup, more stable and reliable
The machine provides mass storage: 100 samples per day analysis, analysis time 30min calculation, can save at least one year of mass spectrum data.
With the cloud storage technology, data can be automatically backed up to the Internet, to achieve unlimited, stable and reliable data backup and storage.
Using cloud storage technology to achieve anytime, anywhere to download the data at home, the office can always view the work of the equipment, download a variety of report data;
Supports more types of detectors
Dual channel conductance detector
Single channel voltammeter
Dual - channel UV detector
According to customer needs, can be any combination;
Note: Due to technical progress update, the performance indicators will improve, site indicators for reference only.
